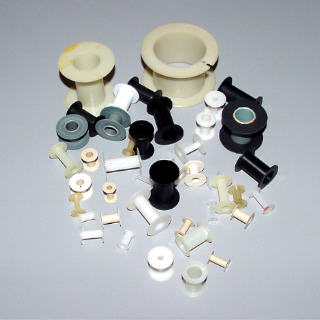

 The charts show a wide variety of over 1,000 plus solenoid bobbins available to General Linear Systems to assist you with your new solenoid coil design as well as your choice of bobbin. Each of the chart icons represents a selection of bobbins in increments of .050". Choose the appropriate size for the bobbin ID.

  Back to solenoids page    Click the bobbin ID you need       Next size

(140-200)   (201-250)   (251-300)   (301-350)   (351-400)   (401-450)

(451-500)   (501-551)   (551-600)   (601-650)   (651-700)   (701-750)

Round  Solenoids Bobbins

Core ID .141"  To .200"

Part Number

Core ID

Flange OD

Length

Wall

Flange Styles

1427-0

.140 dia.

.400 dia.

.350

.031

XX

2604-0

.140 dia.

.500 dia.

.750

.025

EE

2624-0

.140 dia.

.718 dia.

.800

.030

EE

1776-0

.156 dia.

.625 dia.

.187

.025

EE

1723-0

.160 dia.

.515 dia.

.195

.023

EE

3683-0

.155 dia.

.545 dia.

.210

.018

EE

4835-0

.156 dia.

.440 dia.

.240

.025

EE

1622-0

.152 dia.

.359 dia.

.246

.030

EE

1713-0

.146 dia.

.375 dia.

.265

.030

EE

3638-0

.150 dia.

.437 dia.

.314

.031

EE

8412-0

.150 dia.

.380 dia.

.400

.025

EE

81466-0

.160 dia.

.470 dia.

.405

.025

EE

3778-0

.150 dia.

.343 dia.

.437

.025

NN

1670-0

.150 dia.

.875 dia.

.437

.032

EE

1650-0

.150 dia.

.565 dia.

.437

.025

EE

8488-0

.156 dia.

.430 dia.

.540

.025

EE

5731-0

.143 dia.

.687 dia.

.598

.022

EE

5785-0

.158 dia.

.375 dia.

.625

.025

EE

5751-0

.160 dia.

.500 dia.

.650

.025

EE

3615-0

.156 dia.

.410 dia.

.687

.030

EE

81178-0

.158 dia.

.470 dia.

.700

.015

EE

1763-0

.157 dia.

.320 dia.

.728

.030

EE

2697-0

.160 dia.

.484 dia.

.770

.020

EE

3690-0

.141 dia.

.375 dia.

.800

.025

DD

3747-0

.150 dia.

.450 dia.

.800

.025

PP

7073-0

.141 dia.

.375 dia.

.800

.025

EE

8668-0

.148 dia.

.340 dia.

1.090

.025

EE

1724-0

.160 dia.

.593 dia.

1.312

.040

EE

81272-0

.158 dia.

.600 dia.

1.415

.033

MM

3733-0

.165 dia.

.380 dia.

.215

.025

EE

3630-0

.175 dia.

.470 dia.

.245

.023

EE

2036-0

.163 dia.

.472 dia.

.262

.020

LL

1787-0

.180 dia.

.545 dia.

.345

.025

EE

5337-0

.161 dia.

.500 dia.

.450

.020

EE

3618-0

.171 dia.

.375 dia.

.461

.030

EE

3707-0

.171 dia.

.750 dia.

.500

.062

EE

8299-0

.167 dia.

.335 dia.

.715

.020

EE

2783-0

.175 dia.

.812 dia.

.845

.030

EE

2775-0

.165 dia.

.620 dia.

.865

.046

EE

3813-0

.163 dia.

.400 dia.

1.150

.020

EE

3776-0

.177 dia.

.531 dia.

1.345

.040

EE

7340-0

.177 dia.

.531 dia.

1.351

.022

EE

2689-0

.194 dia.

.418 dia.

.125

.018

EE

5089-0

.191 dia.

.346 dia.

.163

.045

KK

2626-0

.196 dia.

.312 dia.

.187

.031

EE

4998-0

.187 dia.

.656 dia.

.343

.030

EE

1730-0

.193 dia.

.370 dia.

.435

.025

EE

1858-0

.195 dia.

.530 dia.

.437

.020

EE

4852-0

.196 dia.

.620 dia.

.460

.020

EE

5920-0

.200 dia.

.750 dia.

.500

.046

EE

7074-0

.187 dia.

.687 dia.

.500

.020

EE

1665-0

.200 dia.

.500 dia.

.500

.040

EE

3122-0

.190 dia.

.630 dia.

.510

.025

EE

4442-0

.192 dia.

.562 dia.

.563

.030

EE

2788-0

.187 dia.

.531 dia.

.572

.062

EE

2612-0

.192 dia.

.750 dia.

.578

.030

EE

2616-0

.191 dia.

.406 dia.

.600

.032

EE

3601-0

.187 dia.

.500 dia.

.625

.030

EE

1872-0

.194 dia.

.740 dia.

.640

.034

EE

1791-0

.190 dia.

.680 dia.

.643

.031

JJ

1775-0

.198 dia.

.615 dia.

.688

.040

EE

3730-0

.187 dia.

.500 dia.

.693

.031

EE

3934-0

.196 dia.

.750 dia.

.750

.020

EE

4361-0

.200 dia.

.625 dia.

.758

.020

EE

7075-0

.191 dia.

.750 dia.

.843

.032

EE

4441-0

.192 dia.

.500 dia.

1.063

.030

EE

8131-0

.195 dia.

1.500 dia.

1.080

.090

EE

4931-0

.196 dia.

.500 dia.

1.150

.020

EE

5756-0

.196 dia.

.500 dia.

1.150

.022

EE

1764-0

.192 dia.

.750 dia.

1.165

.045

EE

5490-0

.195 dia.

.500 dia.

1.875

.032

JJ

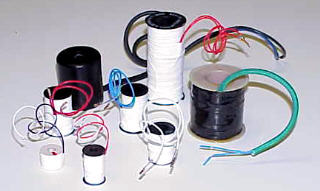

Typical Solenoid Coils

Fine the right bobbin size & let us  do the rest using our solenoid design software

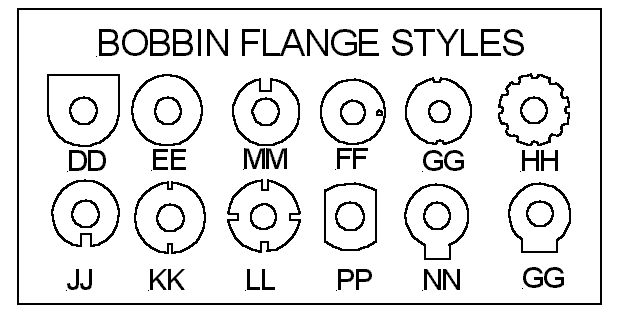

Bobbin Flange Styles
Click Here: For a Pre-constructed drawing in a PDF file

Click Here to See:  The Next  Range
Click Here to See:  The Next  Range
